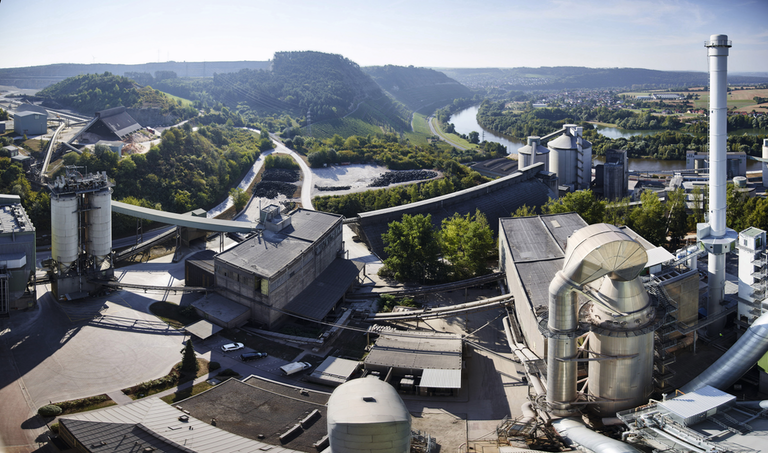

Beumer Case Study Heidelberg Cement 01a 5f2c1ecc37886

Fueling Your Business: Using Waste for Production

Aug. 10, 2020
HeidelbergCement uses old tires as secondary fuel.

The manufacture of cement is particularly energy-intensive. To reduce the use of valuable primary fuels like coal, Germany-based HeidelbergCement is opting for alternative fuels, such as waste tires. The calorific value of rubber is comparable to that of hard coal. And because the iron from the armoring can be incorporated mineralogically into the cement, it reduces the need to add ferrous corrective substances.

BEUMER Group supplied the fully-automated system that sorts, separates, and regulates the tires of different sizes and weights and feeds them to the rotary kiln inlet. The system supplier also took over the installation and provided the steel structure. The kiln of the cement plant is now fed with a constant stream of material.

"With every ton of waste tires that we're using, we're replacing the same amount of valuable hard coal," explains Michael Becker. He is the director of the HeidelbergCement plant in Lengford, a small town in Germany. The company, headquartered in Heidelberg, is one of the largest cement manufacturers worldwide,  with eight cement and three grinding plants.

"Waste tires have a high heat content, meaning that they are the ideal fuel for our production," says Becker. About 20,000 tons of hard coal is used in the plant annually to produce approximately 20% of the overall heat we require, this corresponds to 20 million tires.

"This is how we can substitute the primary fuel with the tires as secondary fuel," he emphasizes.

The tires that are used are production waste coming from the manufacturers as well as waste tires from trucks and cars. This also means that they vary greatly: their diameters vary between 300 and 1,600 mm, their widths between 100 and 400 mm. The average weight is at 8 kg for the car tires and around 60 kg for the truck tires.

Only One System Instead of Two

To feed the different tire material to the rotary kiln inlet, HeidelbergCement used to operate two systems: one line transported the smaller and lighter car tyres, the other one, the larger and heavier truck tires. "We didn't think that this solution was efficient enough," resumes Becker. "Our employees hung the tires individually by hand into the hook lift and then transported into the kiln inlet. The heavy truck tires were handled by an excavator before they were fed into the transport stream. With the new fully automatic system we were able to not only improve this process with regard to occupational safety but also optimize the working conditions for our employees in combination with increased performance. We already had a great experience with solutions from BEUMER Group in other plants," says Becker. "This made it easy for us to opt for the system provider."

From One Single Source

The first meeting took place in January 2015. As part of the engineering contract, a solution was developed and presented by April 2015. "Based on this contract we worked out a quote by July, the contract was awarded at the end of the month and we were able to start at the beginning of August," says Ralf Lehmkühler, senior sales manager at BEUMER Group. "We delivered a feeding and dosing box to feed the wheel loader, hook separators, separating lines for the tires, a flat belt conveyor with corrugated sidewalls including a conveyor bridge, a tire transport system or the preheater tower and a tire sluice, as well as different checking devices."

The BEUMER Group team started the assembly in February 2016. The experts integrated the electric control system that was provided by the customer and was responsible for the steel structure and the mechanics.

Continuously Into the Kiln

Wheel loaders slowly take out the waste tires from the collection point and feed the feeding and sorting box. With a volume of 140 m3, it's big enough to provide enough material for one shift. It's equipped with a moving floor: plate fins that are moved by a hydraulic drive transport the waste tires to the outlet side of the feeding and dosing box. Photocells, mounted at different heights, measure the fill level. When a tire arrives at the discharge side, it is taken over by the hook separator. It then turns upwards and changes the direction at the drive station. The tire falls on a roller conveyor. "The hook separator starts operating only when the roller conveyor sends a release signal and the photocell at the hook separator is free," explains Becker. This prevents the tires from falling on top of each other. Additionally, they lose any water that might have collected inside the tire due to the impact when falling on the roller conveyor, and any dirt is removed. A checking device recognizes if the tires are damaged or if the rims are still on. Those tires are discharged from the system.

The "good" material is transported from a timing roller conveyor to a flat belt conveyor with corrugated sidewalls. It provides a separate compartment for each tire. There is a transfer chute in the discharge area of the conveyor. The tires are always guided thanks to the design of the chute.

The conveyor transports the combustible material now into the preheater tower. A scale determines the weight of the tire on the conveyor. The result is registered by the control and evaluated for the feed regulation of the tires. The tires enter the tire sluice through the inlet chute. An arched chute and a guide plate bring the tires from their horizontal to a vertical position.

The tires enter the tire sluice one by one. At the rotary kiln inlet, only one of the flap valves is open at a time to avoid heat losses and flashbacks. "First the upper one opens. Then it closes and the lower flap valve opens," describes Lehmkühler. The compressed-air tank also ensures that all flaps are closed in case of failure.

Ready for the Future

Installation and commissioning were completed within the preset period. The conveying capacity can reach a maximum of three tons per hour, approximately 700 tires. Thanks to the new system, HeidelbergCement can now feed its kiln with the combustible in a continuous stream and faster than before.
