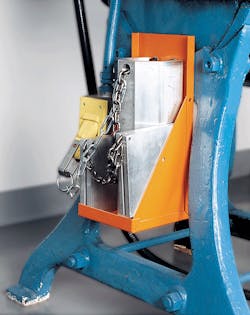

Die safety blocks are called by many names: safety blocks, ram blocks, die blocks or prop blocks. Regardless of the term, die safety blocks all have the same purpose: provide protection to employees working in the die area from a free-falling upper die/slide.
Bureau of Labor Statistics (BLS) data indicate that approximately three-fifths of all work-related amputations involved a worker's finger or arm getting caught or compressed by a piece of machinery such as a press or conveyer. Injury statistics compiled by OSHA indicated that 49 percent of the injuries from mechanical power presses resulted in an amputation.
This all-too-common accident happens in the event of a brake or counterbalance failure, broken pitman or adjusting screw, or a sudden loss of hydraulic pressure on presses.
While die safety blocks appear to be simple devices, they protect workers from injury. There are many factors to consider in choosing what type of to use, as well as how many to use or where to put them. As a result many organizations struggle with this topic.
Die safety blocks are required by OSHA, and in CFR 29, Subpart O, 1910.217 (d)(9)(iv) Mechanical Power Presses, states, “The employer shall provide and enforce the use of safety blocks for use whenever dies are being adjusted or repaired in the press.”
While OSHA does not require the use of safety blocks during die setting, safety-focused companies include them during die setting procedures as a best safety practice. Proper use of die safety blocks also satisfies OSHA’s lockout/tagout requirements for controlling mechanical energy. It is important to be aware that multiple ANSI B11 safety standards require the use of electrical interlocks with safety blocks since they are only designed to hold the static weight of the slide and upper die, not the driving force of the press itself.
Anytime an employee needs to put their hands in the die area of a press or is required to work on the die, they must follow OSHA regulations without exception. At no time should the employee make any adjustments or service within the die space area without taking proper protection measures that meet OSHA and ANSI requirements. Regardless of how time-consuming, the employer is responsible – and liable – for these procedures in a press shop.
According to ANSI B11.19-2003, safety blocks “shall be interlocked with the machine to prevent actuation of hazardous motion of the machine.” The electrical interlock system for die safety blocks must be interfaced into the control system so that when the plug is pulled, the power to the main drive motor and control is disconnected. If the machine has a mechanical energy source, such as a flywheel, it must come to rest before the die block can be inserted.
In recent years, the rate of non-fatal injuries for press operators has significantly dropped, indicating that safeguarding equipment and effective regulations are preventing common injuries. However, a careless press operator can still cause great harm to himself or to others by neglecting to follow proper die safety block procedures.
With the press motor off and the flywheel at rest for mechanical presses, safety blocks are placed between the die punch and holder while the machine stroke is up. The number of safety blocks is determined by the size of the press bed and the weight the blocks must support. On larger presses, the total slide weight must be distributed among the quantity of safety blocks required. As many as four safety blocks may be needed in larger-scale applications.
Ram usually are adjustable, so wedges or an adjustable screw device are offered to provide a proper fit. If the die takes up most of the space on the die set, it may be difficult to find a place to insert the block. To avoid accidentally stroking the press or leaving the safety block in the die after use, an electrical cut-off interlock system should be used. Again, note that electrical interlocking of die safety blocks to the machine’s motor and control circuits is required by ANSI B11.19. This critical step breaks the electrical circuit to the main motor and feed drive so it cannot run when the safety blocks are put in the die area.
Die Safety Block Calculations
Three factors need to be determined to guide the selection of safety blocks: static load, block length and block size.
Determine static load – The static load that the die safety block will support is determined by adding the actual weights of the press slide and slide components, such as the ram-adjustment assembly, connection rods or pitman arms, and the upper die. If this weight cannot be determined, an approximate static load can be calculated using the formula below.
Allow 2,000 pounds of static load for each cubic foot displaced in the press bed area (front to back x right to left) multiplied by the shut height (die space) of the press. (Note: When using this formula, the calculated approximated static load has a safety factor of two.)
Static Load Formula:
(Press Bed Area (square inches) x Shut Height (inches))/(Cubic Inches/Cubic Feet (1,728 cubic inches/cubic foot constant))
Cubic feet displaced x 2,000 lb/cubic foot = Total Static Load
Press Bed Area = 48 inches x 96 inches
Shut Height = 24 inches
(48 x 96 x 24)/1728 or 110,592/1728 = 64 cubic feet
64 cubic feet displaced x 2,000 lb/cubic foot = 128,000 Total Cubic Static Load
Determine Block Length – With the machine at the top of its stroke, stroke up –adjustment up (S.U.A.U.), measure the space between the upper and lower die set plates, and not the distance between the bolster and slide. This gives the maximum safety block length. To determine the S.U.A.D. measurement, subtract the ram adjustment from the S.U.A.U. figure. This provides the minimum length of the die safety block.
There are exceptions. If wedges will be used, subtract 1-1⁄2 inches maximum. This is an allowance for variation in the stopping point of the crankshaft or adjustment of the ram.
When an adjustable screw device is added to an octagonal safety block and the screw is all the way inside of the safety block, it will add 2 inches to the overall length of small and medium safety blocks and 2-1⁄2 inches to the overall length of large safety blocks. Therefore, subtract 2 inches for small or medium blocks and 2-1⁄2 inches for large blocks to determine the length of the aluminum portion of the die block.
For example, if the minimum overall length of the small or medium safety block required is 10-1⁄2 inches with any size adjustable screw device, the aluminum portion of the safety block would be 8-1⁄2 inches (10-1⁄2 inches – 2 inches = 8-1⁄2 inches). Or if the minimum overall length of the large safety block required is 16 inches with any size adjustable screw device, the aluminum portion of the safety block would be 13-1⁄2 inches (16 inches – 2-1⁄2 inches = 13-1⁄2 inches).
Determine block size – The size of the die safety block – small, medium, large – is determined by one or both of the following factors:
- The size of the block itself and the area available in the die.
- The static load capacity of the block versus the total static load being supported.
To further customize their unique solutions, die press operators also can choose wedge shapes for their safety dies, such as X, U or octagon shapes, and there are choices available to meet any size requirement.
About the author: Carrie Halle is vice president of marketing for Rockford Systems, LLC. She has more than 25 years experience in global business planning, branding, product management and marketing communications with leading manufacturers and safety equipment suppliers.
